3D template:
29 warning signs according to DIN EN ISO 7010

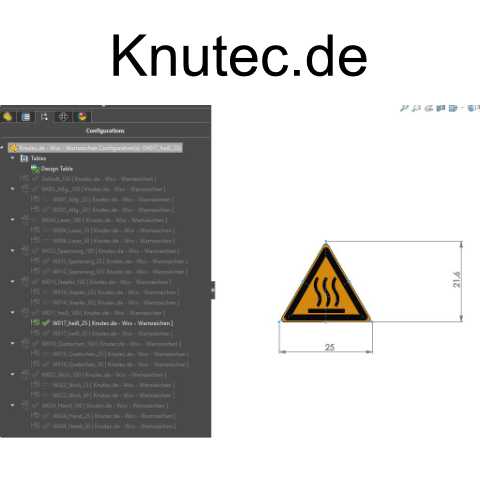

with 1x click, the right character in the right size can be configured.
Works from Solidworks version 20.
All signs are constructed in 3D, there is no image positioned on the sign.
DIN EN ISO 7010 - Graphic symbols - Safety colors and safety signs -
Registered Safety Marks (ISO 7010:2019)
ASR A1.3:2013 - Health and Safety Labeling
Already during the construction you know where which pictogram goes and which size fits in which position.
Current sizes, side length: 25mm, 50mm, 100mm, 200mm
Package contains the following characters:
| W001 - General warning sign |
| W002 - Warning of explosive substances |
| W003 - Radioactive material or ionizing radiation warning |
| W004 - Laser Beam Warning |
| W005 - Non-Ionizing Radiation Warning |
| W006 - Magnetic field warning |
| W007 - Warning of obstacles on the ground |
| W008 - Fall Hazard Warning |
| W009 - Biohazard Warning |
| W010 - Low Temperature/Freeze Warning |
| W011 - Warning of slipping hazard |
| W012 - Electrical voltage warning |
| W013 - Watchdog warning |
| W014 - Warning of industrial trucks |
| W015 - Suspended load warning |
| W016 - Toxic substance warning |
| W017 - Hot surface warning |
| W018 - Automatic start warning |
| W019 - Crushing hazard warning |
| W020 - Warning of obstacles in the head area |
| W021 - Flammable Substances Warning |
| W022 - Sharp object warning |
| W023 - Warning of corrosive substances |
| W024 - Hand Injury Warning |
| W025 - Reverse Roll Warning |
| W026 - Battery charging hazard warning |
| W027 - Optical Radiation Warning |
| W028 - Warning of oxidizing substances |
| W029 - Gas bottle warning |
This does not work with Solidworks versions older than SW20!
