3D template:
All prohibition signs according to DIN EN ISO 7010
with 1x click, the right character in the right size can be configured.
Works from Solidworks version 20.

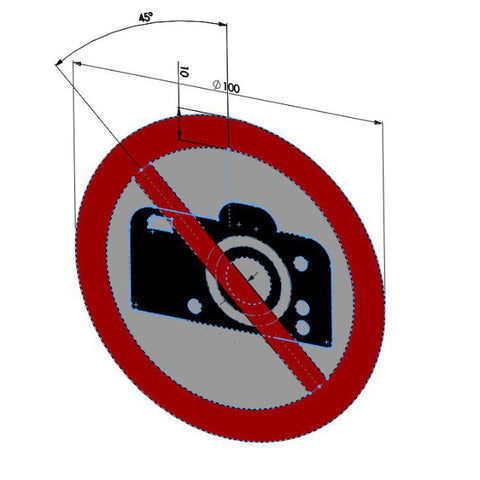

All signs are constructed in 3D, there is no image positioned on the sign.
DIN EN ISO 7010 - Graphic symbols - Safety colors and safety signs -
Registered Safety Marks (ISO 7010:2019)
ASR A1.3:2013 - Health and Safety Labeling
Already during the construction you know where which pictogram goes and which size fits in which position.
Current sizes, side length: 25mm, 50mm, 100mm, 200mm
Package contains the following characters:
| P001 |
General prohibition sign |
| P002 |
smoking prohibited |
| P003 |
No open flame; Fire, open ignition and smoking prohibited |
| P004 |
Forbidden for pedestrians |
| P006 |
Prohibited for industrial trucks |
| P007 |
No access for people with cardiac pacemakers or implanted defibrillators |
| P009 |
Climbing prohibited |
| P010 |
Do not touch |
| P011 |
Extinguish with water
forbidden |
| P012 |
No heavy burden |
| P013 |
Cell phones not allowed to be switched on |
| P014 |
No access for people with metal implants |
| P015 |
Reaching forbidden |
| P017 |
Pushing prohibited |
| P018 |
Sitting prohibited |
| P019 |
Climbing onto the surface is prohibited |
| P020 |
Do not use lift in the event of a fire |
| P023 |
Parking or storage prohibited |
| P024 |
Entering the area prohibited |
| P027 |
Passenger transport prohibited |
| P028 |
Use of gloves prohibited |
| P029 |
No photography allowed |
| P031 |
Switching prohibited |
| P069 |
Not to be maintained by users |
This does not work with Solidworks versions older than SW20!
