3D or CAD template:

8 fire protection signs according to DIN EN ISO 7010

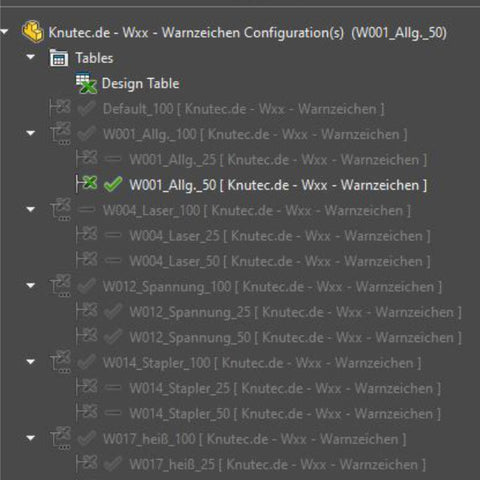

with 1x click, the right character in the right size can be configured.

Works from Solidworks version 20.

All signs are constructed in 3D, there is no image positioned on the sign.

DIN EN ISO 7010 - Graphic symbols - Safety colors and safety signs -
Registered Safety Marks (ISO 7010:2019)

ASR A1.3:2013 - Health and Safety Labeling

Already during the construction you know where which pictogram goes and which size fits in which position.

Current sizes, side length: 25mm, 50mm, 100mm, 200mm

Package contains the following characters:

F001	fire extinguisher

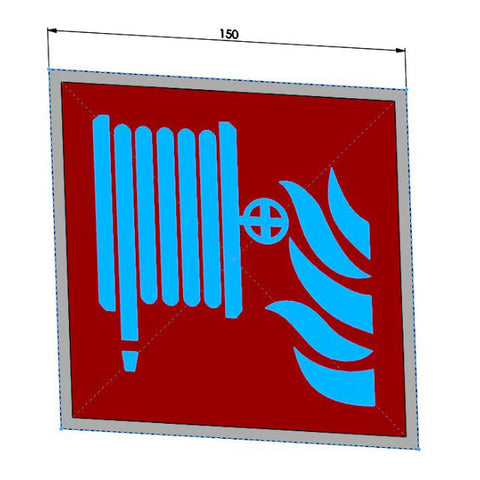

F002	fire hose
F003	fire escape
F004	Means and devices for fire fighting
F005	fire detector
F006	fire alarm telephone
F007	fire door
F016	fire blanket

This does not work with Solidworks versions older than SW20!
